We also carry the Challenge Titan 230 (23"), Titan 265 (26.5"), Challenge 305 & Challenge 370 Paper Cutters. Please contact us for full details & pricing.

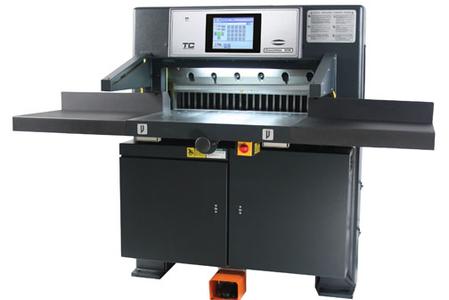

Challenge Titan 200
With today’s digital print market placing great demands on your business, some decisions can be difficult. Investments in cutting-edge wide format, inkjet, and digital print engines ensure you meet your customer’s diverse needs, but there are so many choices! When it comes to choosing your next paper cutter, this one is easy…step up to a Titan 200! The Titan 200 continues the Challenge excellence of innovation and strength we’ve become famous for since 1870. The Titan 200 is based on a solid cast iron and steel construction for maximum durability. UHMW gib surfaces, LED line lights, and a one-inch thick solid tool aluminum table require virtually no maintenance for years of trouble-free operation. The intuitive menu-driven controller allows variable mode data entry with up to 99 jobs / 9,801 total cut position storage. The optional electronic clamp pressure control minimizes waste. Machine self-diagnostics and error indication walks the operator through any potential difficulties. The Titan 200 meets the toughest safety standards in the industry today. Light-safety curtains, enclosed rear table, two-hand cut buttons, and knife safety latch contribute to our UL and CE certifications. Proudly manufactured in the USA, The Titan 200 continues our legacy of providing…assurance you made the right decision. Fully hydraulic cutting and clampingSolid cast iron and steel construction ensure years of trouble-free operationSolid 1-inch thick tool grade aluminum table offers the strong work surface required in production environmentsBright red LED line light is easy to see and needs no future replacementOptional electronic clamp pressure adjustmentFully programmable controller offers intuitive operation and up to 9,801 total cut position storage
Maximum Cutting Width: 20" / 50.8cm
Minimum Cut: without false clamp plate 1/2" / 13mm
with false clamp plate 1-7/8" / 48mm
Maximum Cut Depth: 20" / 50.8cm
Clamp Opening: without false clamp plate 3-1/4" / 8cm
with false clamp plate 3" / 7.6cm
Clamping Method Hydraulic and Manual Backgauge Control Power
DIMENSIONS Table Space: in front of knife 15-1/4" / 39cm
behind knife 20" / 51cm Overall Height 53" / 135cm Overall Width 36" / 91cm Overall Length 49-5/8" / 126cm
Net Weight (approximate) 795 lbs / 361 kg
Shipping Weight (approximate) 920 lbs / 418 kg
ELECTRICAL 1-1/2 H.P. 1 Phase, 60 Hz, AC 230 Volts, 12 Amps (service size 15 Amps)
Requires receptacle type: NEMA 6-15R or 6-20R U.L. Listed

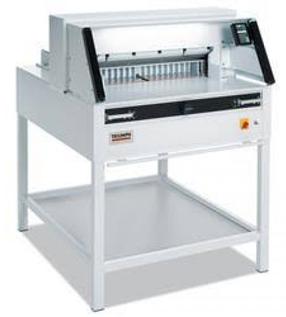

Triumph 6660
Programmable cutter with automatic clamp, power back gauge, digital touchpad, and IR safety light beams on front table.Comprehensive SCS safety package: patented EASY CUT electronic blade activation bars for true two-hand operation; IR light beam safety curtain on front table; safety cover on rear table; main switch and safety lock with key; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; blade and cutting stick can be changed without removing covers.Ergonomic, 37 inch working height. Electric blade and clamp drive. Electric back gauge drive with touchpad for easy programming. Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch. Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step). Pre-programmed for standard paper sizes. Memory key for repeat cuts. Automatic SET function for reference measurement and EJECT function for pushing out paper. Self-diagnostic system with error indication on display. Electronic hand wheel with variable speed control for manual back gauge setting. Bright, LED optical cutting line. 3-step, LED front table illumination; Adjustable, spindle guided back gauge with narrow separations and plastic gliders. Dual side guides on front and rear tables. High quality, German steel blade. Solid steel blade carrier and adjustable blade guides. All-metal construction. Includes stand with storage shelf, easy-access tool holder, and paper blocking tool.
Optional side tables increase work surface.
UL and C UL approved.
Electrical requirements: 115 V, 60 Hz (20 amp dedicated line required
)Motor output, horsepower: 2
Dimensions (D x W x H), inches: 48 x 39 x 51 (61 1/2 W with side tables)
Cutting width, inches 25 1/2
Cutting height, inches 3
Narrow cut, inches 1
Length behind blade, inches 24

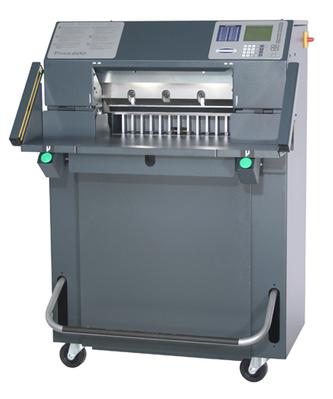

Triumph 6655
Programmable cutter with automatic clamp, power back gauge, and digital touchpad. Cutting width is a full 25 1/2 inches.Comprehensive SCS safety package: patented EASY CUT electronic blade activation bars for true two-hand operation; transparent, electronically controlled front safety guard; safety cover on rear table; main switch and safety lock with key; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; blade and cutting stick can be changed without removing covers.Ergonomic, 37 inch working height. Electric blade and clamp drive. Electric back gauge drive with touchpad for easy programming. Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch. Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step). Pre-programmed for standard paper sizes. Memory key for repeat cuts. Automatic SET function for reference measurement and EJECT function for pushing out paper. Self-diagnostic system with error indication on display. Electronic hand wheel with variable speed control for manual back gauge setting. Bright, LED optical cutting line. Adjustable, spindle guided back gauge with narrow separations and plastic gliders. Dual side guides on front and rear tables. High quality, German steel blade. Solid steel blade carrier and adjustable blade guides. All-metal construction. Includes stand with storage shelf, easy-access tool holder, and paper blocking tool.
Optional side tables increase work surface.
UL and C UL approved.
Electrical requirements: 115 V, 60 Hz (20 amp dedicated line required)
Motor output, horsepower: 2
Dimensions (D x W x H), inches: 48 x 39 x 51 (61 1/2 W with side tables)
Cutting Width: 20-3/8"
Cutting Height: 3"
Narrow Cut: 1-3/8"
Length Behind Knife: 20-3/8"

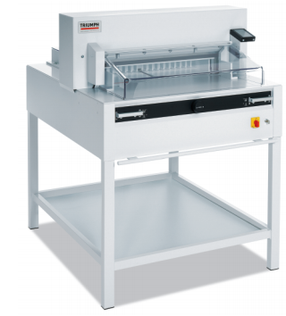

Triumph 5255
Programmable cutter with automatic clamp, power back gauge, and digital touchpad. Comprehensive SCS safety package: patented EASY CUT electronic blade activation bars for true two-hand operation; transparent, electronically controlled front safety guard; safety cover on rear table; main switch and safety lock with key; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; blade and cutting stick can be changed without removing covers.Ergonomic, 37 inch working height. Electric blade and clamp drive. Electric back gauge drive with touchpad for easy programming. Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch. Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step). Pre-programmed for standard paper sizes. Memory key for repeat cuts. Automatic SET function for reference measurement and EJECT function for pushing out paper. Self-diagnostic system with error indication on display. Electronic hand wheel with variable speed control for manual back gauge setting. Bright, LED optical cutting line. Adjustable, spindle guided back gauge with narrow separations and plastic gliders. Dual side guides on front and rear tables. High quality, German steel blade. Solid steel blade carrier and adjustable blade guides. All-metal construction. Includes stand with storage shelf, easy-access tool holder, and paper blocking tool. Optional side tables increase work surface. UL and C UL approved.Electrical requirements: 115 V, 60 Hz (20 amp dedicated line required)Motor output, horsepower: 2Dimensions (D x W x H), inches: 44 x 33 7/8 x 51 (56 1/2 W with side tables)
Cutting Width: 20-3/8"
Cutting Height: 3"
Narrow Cut: 1-3/8"
Length Behind Knife: 20-3/8"

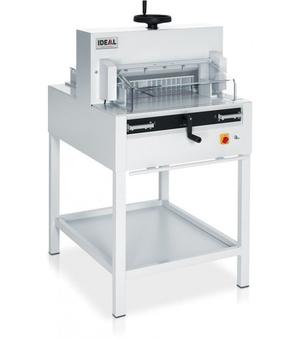

Triumph 4850
Fully automatic cutter with electric blade drive, automatic clamp, and EASY CUT blade activation. Comprehensive SCS safety package: patented EASY CUT electronic blade activation bars for true two-hand operation; transparent, electronically controlled front safety guard; safety cover on rear table; main switch and safety lock with key; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; blade and cutting stick can be changed without removing covers. Ergonomic, 37 inch working height. Electric blade and clamp drive. Spindle-guided back gauge with calibrated crank. Front table digital display (cm or inches) for precise back gauge positioning. Bright, LED optical cutting line. Adjustable back gauge with narrow separations and plastic gliders. Automatic clamp. Dual side guides on front and rear tables. High quality, German steel blade. Solid steel blade carrier and adjustable blade guides. All-metal construction. Includes stand with storage shelf, easy-access tool holder, and paper blocking tool. Optional side tables increase work surface. UL and C UL approved.Electrical requirements: 115 V, 60 Hz (20 amp dedicated line required)Motor output, horsepower: 2Dimensions (D x W x H), inches: 41 1/2 x 30 x 51 (53 W with side tables)
Cutting Width: 18-5/8" inches
Cutting Height: 3"
Narrow Cut: 1"
Length Behind Knife: 18"

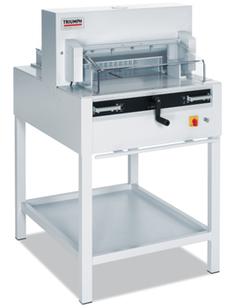

Triumph 4815 Powerful, semi-automatic cutter with electric blade drive, manual spindle clamp, and EASY CUT blade activation. Comprehensive SCS safety package: patented EASY CUT electronic blade activation bars for true two-hand operation; transparent, electronically controlled front safety guard; safety cover on rear table; main switch and safety lock with key; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade return from every position; disc brake for instant blade stop; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; blade and cutting stick can be changed without removing covers.Ergonomic, 37 inch working height. Electric blade drive. Spindle-guided back gauge with calibrated crank. Front table digital display (cm or inches) for precise back gauge positioning. Bright, LED optical cutting line. Adjustable back gauge with narrow separations and plastic gliders. Manual spindle clamp is guided on both sides to apply even pressure along entire cutting width. Dual side guides on front and rear tables. High quality, German steel blade. Solid steel blade carrier and adjustable blade guides. All-metal construction. Includes stand with storage shelf, easy-access tool holder, and paper blocking tool. Optional side tables increase work surface. UL and C UL approved.Electrical requirements: 115 V, 60 HzMotor output, horsepower: 1.5Dimensions (D x W x H), inches: 41 1/2 x 30 x 55 1/2 (53 W with side tables)Shipping weight, pounds: 531 (552 with side tables).
Cutting Width: 18-5/8" inches
Cutting height: 3"
Narrow Cut: 1"
Length Behind Knife: 18"

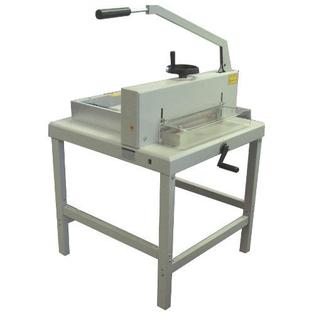

This is a great fit for companies or small print shops with low cutting requirements. A full 18" cutting width gives you plenty of cutting room for full size sheets plus an astounding 800 sheet cutting capacity. The Manual backgauge and clamp are easy to adjust for any size cut and a convenient safety shield helps protects your hands from any potential danger. All metal construction & a solid 1 yr. warranty. This unit is a winner !
Stand included
Max Cutting capacity of 800 sheets of 20lb paper
Max Cutting length of 18" Laser Guide for precision cutting
Wheel Driven paper clamp
Hand crank driven paper stop
Measuring scale in inches, millimeters, and centimeters
Ergonomically designed cutting handle
Protective shield on both sides of the blade Rear shield functions as safety lockPrice $1,995A must for any print or copy environment, a good paper cutter can make all the different in your finished products. We carry a wide variety of paper cutters. Too many to list. Manual, Electric & Hydraulic Cutters from 15" up to 40" Industrial Cutters. We sell MBM/Triumph Cutters and Challenge Paper Cutters. We'd be glad to discuss your applications and recommend the best cutter for your shop.
